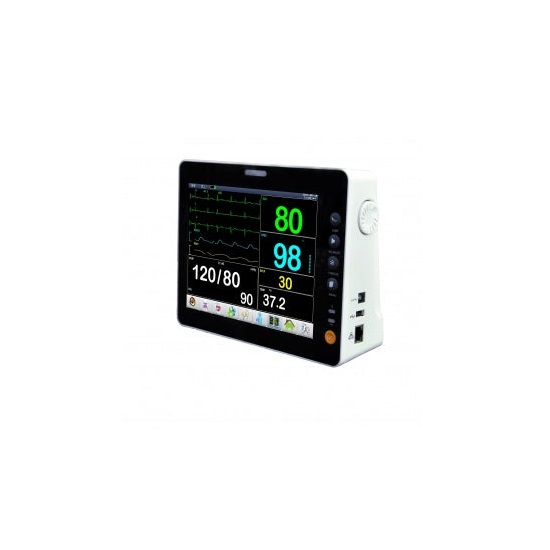

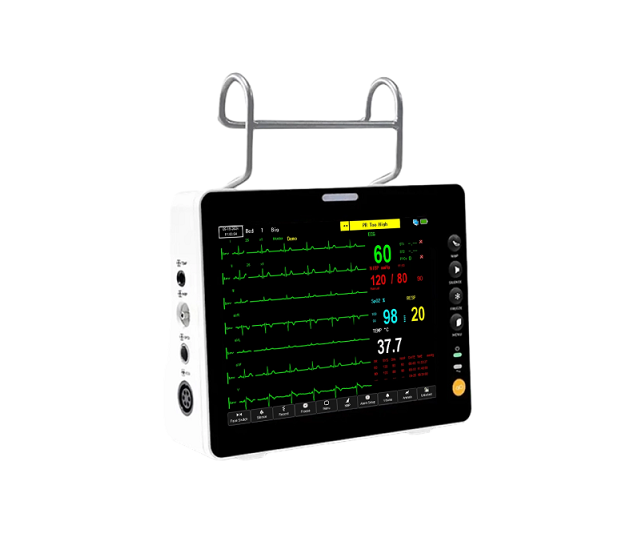

P Monitor JR2000B-2 & Nibp/Spo2/Temp/ECG/RES

R17900,27

Features:

The P Monitor JR2000B-2 & Nibp/Spo2/Temp/ECG/RES is easy to carry, with a 800x 600, 8inch color TFT-LCD screen. Size of main unit is 175x 210mm, thickness is 80mm, weight of main unit with battery is 1.35KG.

Description

P Monitor JR2000B-2 & Nibp/Spo2/Temp/ECG/RES

P Monitor JR2000B-2 & Nibp/Spo2/Temp/ECG/RES



  • Low power consumption, silent operation (no fan), battery working time is 5.5hours,recharge time is 2.5hours.
  • Display mode of big font, trend review, ECG 7 lead, support one key operation, touch screen is optional. Suitable for all working places. Can be used for neonate, child, adult and veterinary patients; support mode of diagnose, monitor and operation.
  • 15 type of arrhythmia analysis,7-lead ECG waveform display in phase. 15 type drug calculation and titration table.
  • Efficient resistance to interference of defibrillator and electrosurgical cautery, respiration can choose III, meet requirement of  operation, ward.
  • Use digital SpO2 technology, can test for 0.1% weak, high accuracy.
  • Anti-ESU, anti-defibrillator RA-LL impedance respiration ,digital filtering.
  • Double over-pressure NIBP protect, temperature drift.
  • Optional functions :Touch screen, EtCO2, Central Monitoring System.

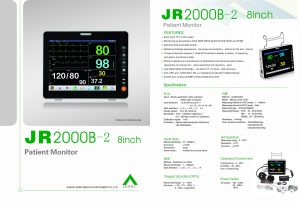

Specifications:

ECG:

  • Input: Whole – lead ECG cable, standard AAMI cable connector
  • Lead selection: I, II, III, avR; avF; c (v1, v2, v3, v4, v5, v6)
  • Gain selection: x1/4, x1/2, x1, x2
  • Sweep speed: 12,5, 25, 50mm/s
  • Bandwidth: 0.05 – 100Hz (for diagnosis); 0.5 – 40Hz (for monitor or operation)
  • Calibration signal: 1mV
  • Protection: Against electrosurgical interference and defibrillation

Heart Rate:

  • Measuring Range: 15 – 300bpm
  • Accuracy: +- 1bpm
  • Resolution: 1bpm
  • Alarm mode: Audible and visual alarm

RESP:

  • Method: Resistance on chest
  • Measuring Range: 7 – 120bpm
  • Gain selection: x 1/2, x1, x2, x4



Oxygen Saturation (SPO2):

  • Measuring Range: 0 – 100%
  • Accuracy: +- 2% (70 – 100%); 0 – 69% unspecified

NIBP:

  • Method: oscillometric
  • Mode: Manual, Auto, STAT
  • Measuring interval in AUTO mode: 1 – 480min
  • Measuring interal in STAT mode: 5min
  • Measuring type – SYS: 40 – 270mmHg, DIA: 10 – 215mmHg, MEAN: 20 – 235mmHg
  • Resolution: 1mmHg
  • Over – pressure protection: Adult 300mmHg; Child 240mmhg, (neonate 150 mmHg)

Temperature:

  • Measuring range: 0 – 50 C (degrees Celsius)
  • Resolution: 0.1 C
  • Accuracy: +- 0.2 C

Operation Environment:

  • Temperature: 0 – 45 C (degrees Celsius)
  • Humidity: 30 – 85%
  • (non – condensing)

Power Option:

  • AC power: 100 – 240V
  • 50 – 60Hz
  • 10VA
